The only analytical vaping machine with zero cleaning, integrated sensors, and multi-channel throughput. Built for vapor product QA/QC, emissions testing, product development, and regulatory testing.
Testing vape cartridges, pods, and disposables - including ENDS, heated tobacco products, pod systems, and disposable vapes - has traditionally meant tedious cleaning, inconsistent consumer batteries, manual operation, and poor data. The Universal Vaping Machine eliminates all of it.

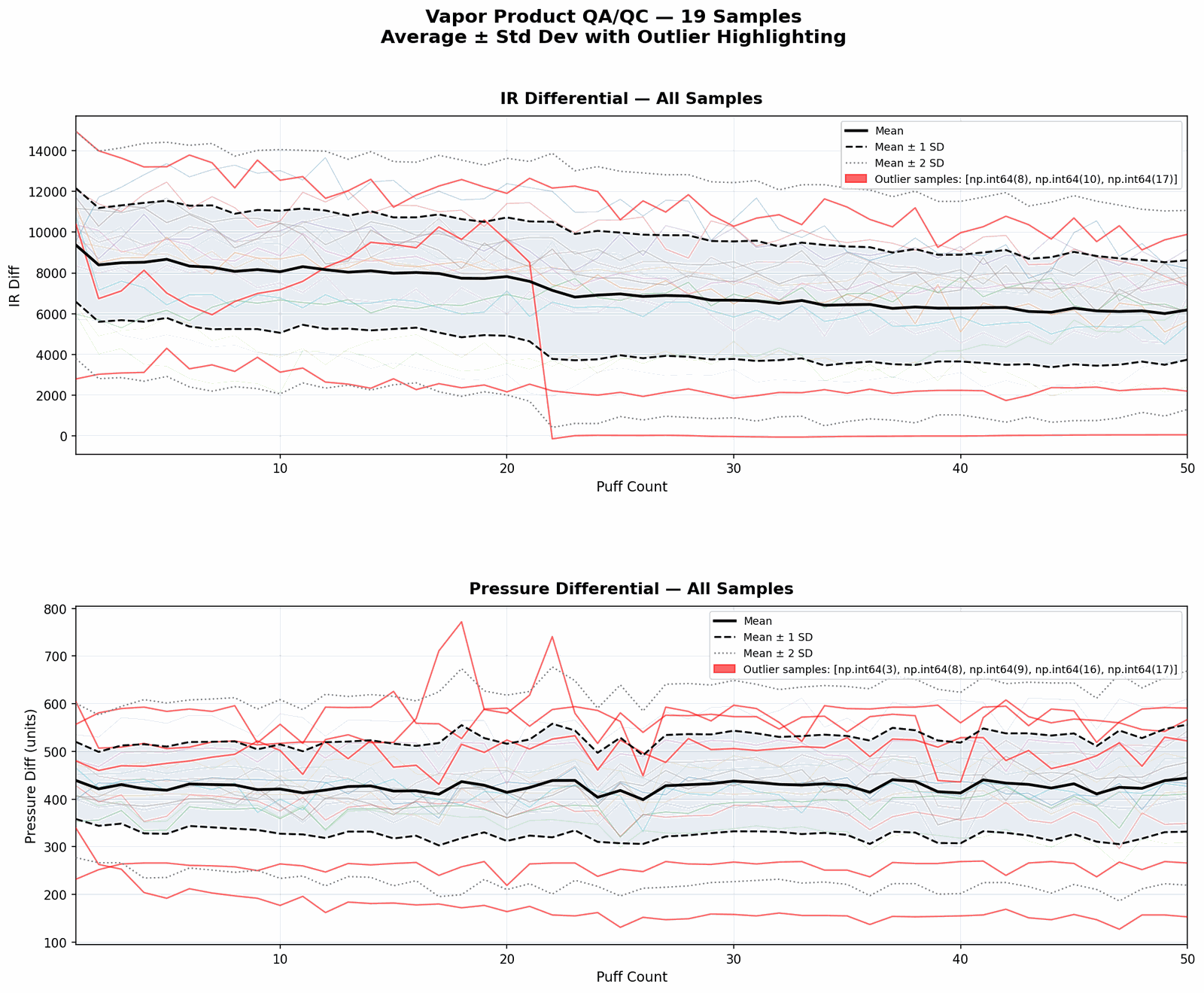

Quantitative Data
Every puff generates publication-grade data: coil resistance, delivered power, vapor density, and pressure drop - logged on a per-puff basis for each channel, timestamped, and exported as a structured Excel spreadsheet.
Instantly see which products fall outside spec: which cartridges clog, which fail to produce vapor, which leak. Run device lifecycle testing to depletion and make go/no-go decisions backed by real numbers, not guesswork.
See the dataThe entire vapor-contact flow path is disposable. Replace it in minutes — no solvents, no scrubbing, no cross-contamination. Especially critical for cannabis vapor, which forms sticky condensates that degrade competing machines.
Test 4 or 10 products simultaneously. Run identical cartridges at different power levels in a single session. Compare batches, formulations, or hardware — all under the same puff conditions, at the same time.
One-click "run until depleted" mode. Integrated IR vapor sensors detect when a product stops producing vapor, giving you the exact standardized puff count — critical for label claim verification and QC.
Pressure sensors, IR vapor density sensors, and resistance metering. Each channel has its own set of sensors. Per-puff sensor data is logged and exported automatically at the end of each run.
Connect 510-threaded cartridges directly to the machine. Set precise wattage in software, bypassing consumer batteries entirely. Eliminate battery charge state as a variable. Per-puff resistance is metered automatically.
Cartridges, pods, tanks, all-in-one disposables, button-activated devices, heat-not-burn products, and combustible cigarettes. One machine covers every form factor on the market.

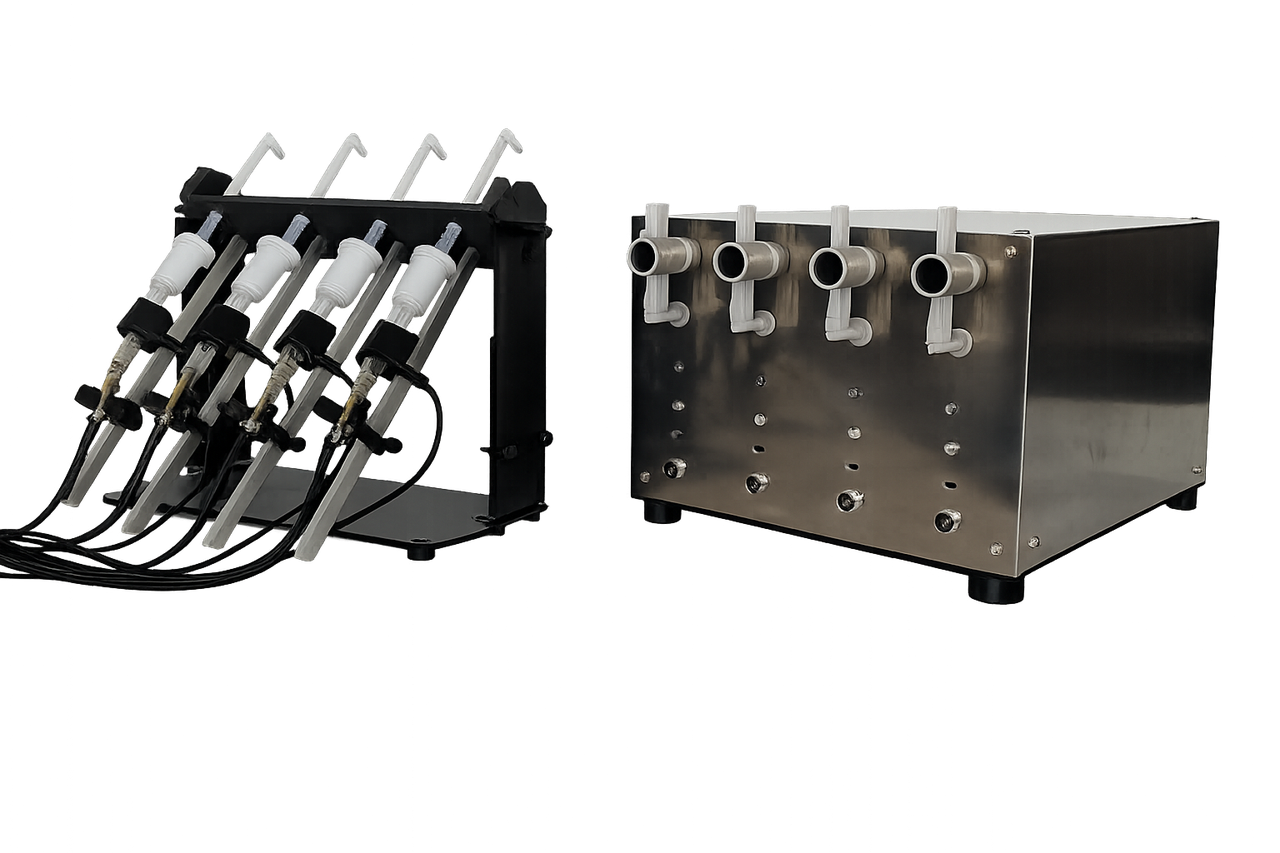

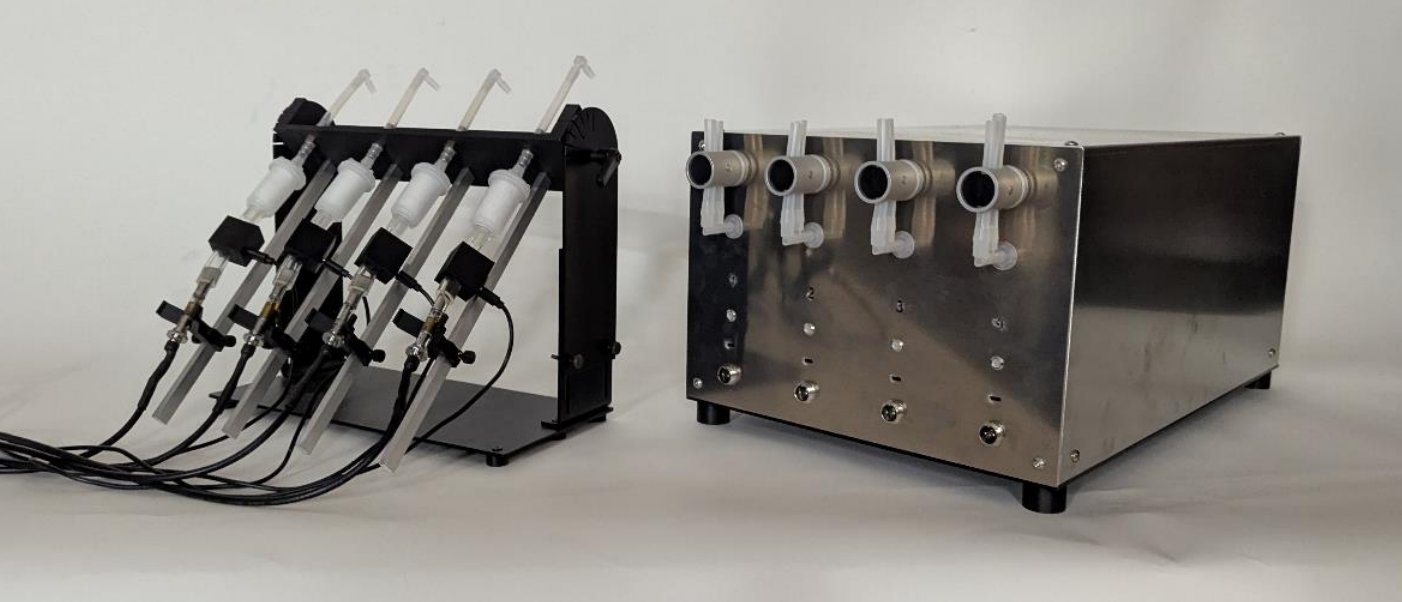

The 4-Channel UVM
The flagship 4-channel Universal Vaping Machine runs four independent channels simultaneously — each with its own syringe pump, pressure sensor, vapor sensor, vape power cable, and button-pusher module.
Compare four power levels, four oil formulations, four hardware designs, or four production batches. Identical puff conditions, parallel execution, comprehensive per-puff data.
Explore the UVMMarket segments
Qualify hardware suppliers, compare oil formulations, verify puff count label claims, detect leaking and clogging. Data-driven product decisions with minimal operator time and zero cleaning.
Learn moreProtocol-compliant aerosol sample generation and capture under ISO, HCI, and CORESTA standards. Used daily by FDA, CDPHE, CDPH, and Australian regulators.
Learn moreContinuous-duty aerosol generation for analytical chemistry, cell culture exposure, and in-vivo studies. Published by UCSF, Scripps, Harvard, and others.
Learn moreGram technology is used every day by the world's leading research institutes, analytical labs, and consumer brands.
Systems ship from California with a 3-year warranty and dedicated US-based support.
